🏍️ GENUINE KYB RED REAR SHOCKS FOR HONDA MONKEY / WAVE / FUTURE 125I (330MM) K-ELITE JAPANESE TECHNOLOGY
Hello there! If you are feeling that the stock rear suspension on your Honda Future 125i, Wave underbone, or the unique Honda Monkey street bike operates too monotonously, is prone to swingarm wobbling when cornering at high speeds, or emits a heartbreaking "clunk" every time you hit a pothole, then upgrading to a high-performance damping system is extremely urgent.

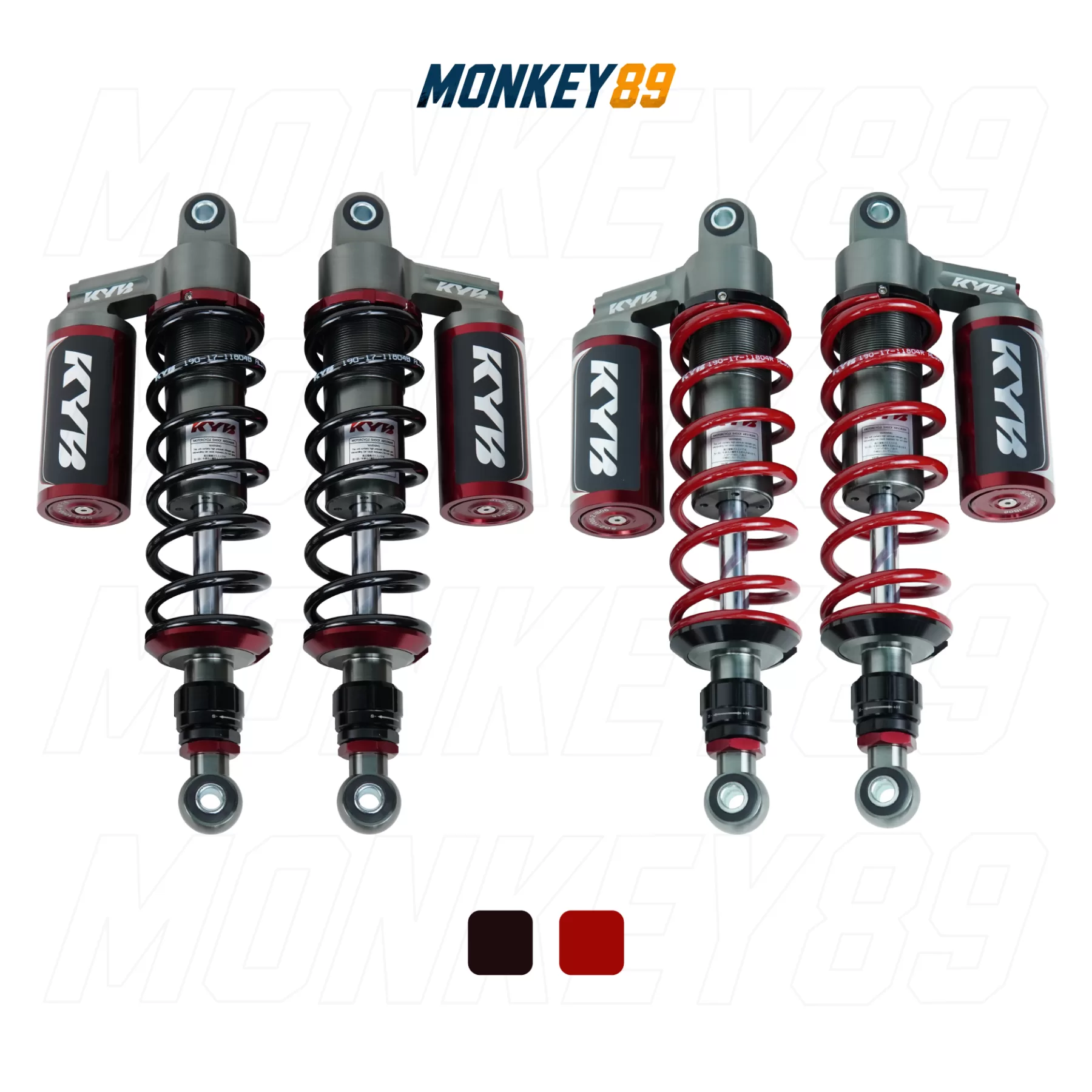

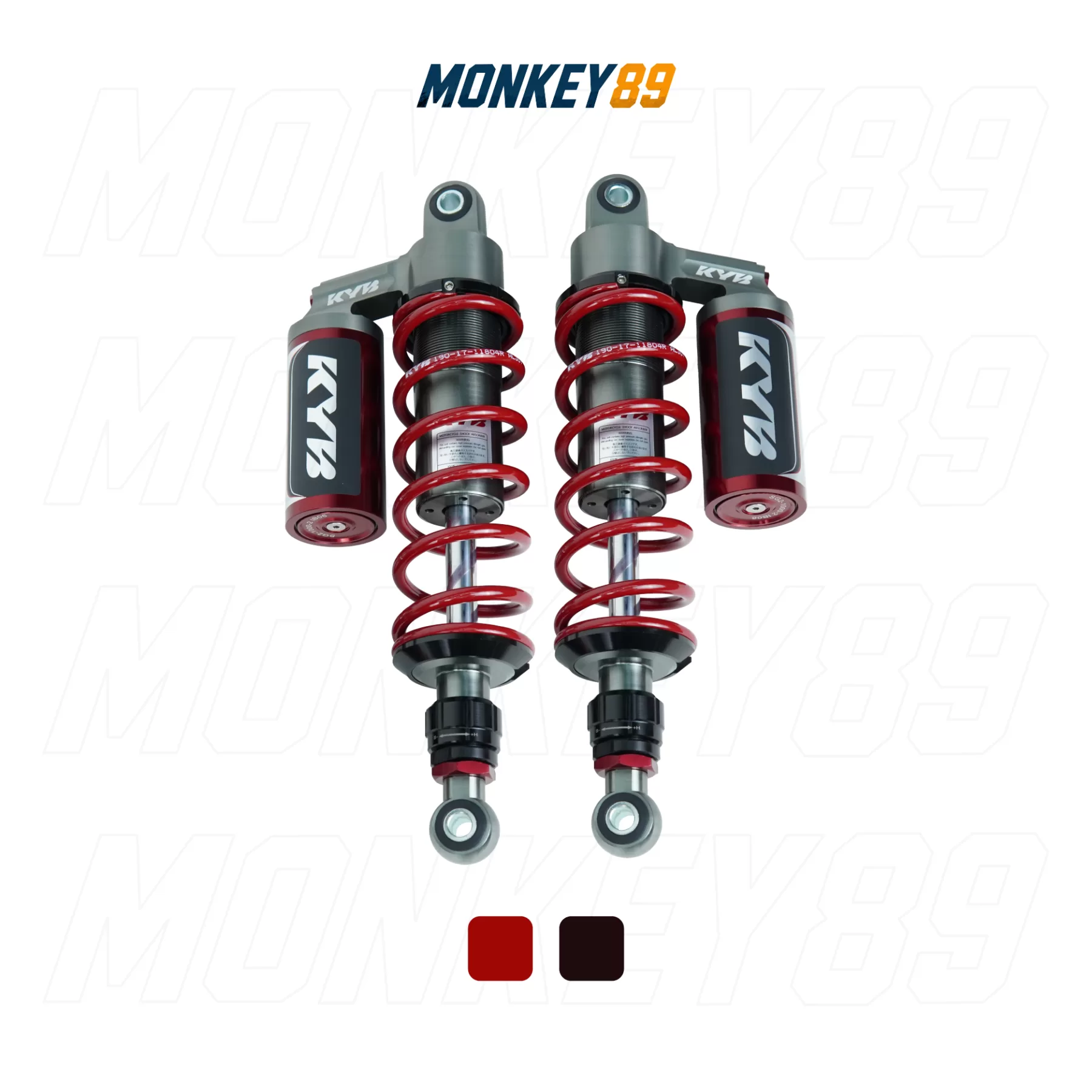

Bringing a vibrant sporty style with a boldly breakthrough Red and Black colorway, Monkey89 proudly introduces: Genuine Japanese KYB K-Elite Red Rear Shocks (330mm) for Honda Monkey / Wave / Future 125i. Belonging to the high-performance 2W Performance upgrade segment, this masterpiece is not only a powerfully aesthetic accent but also delivers absolute rock-solid stability on every long-distance touring journey.
💡 Fitment Note: Please use the compatibility search tool directly on the Monkey89 website—simply enter your motorcycle's make, model, and year to get instant results.
⚙️ DETAILED TECHNICAL SPECIFICATIONS
🚀 REAL-WORLD PERFORMANCE OF THE K-ELITE RED
-

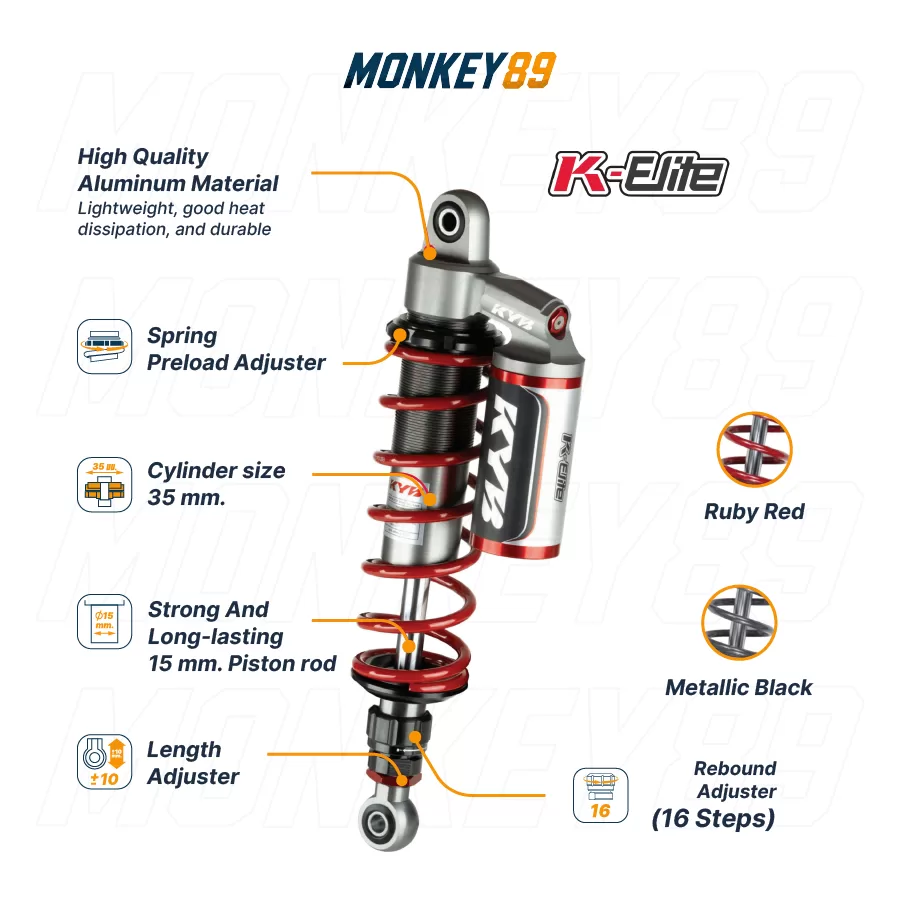

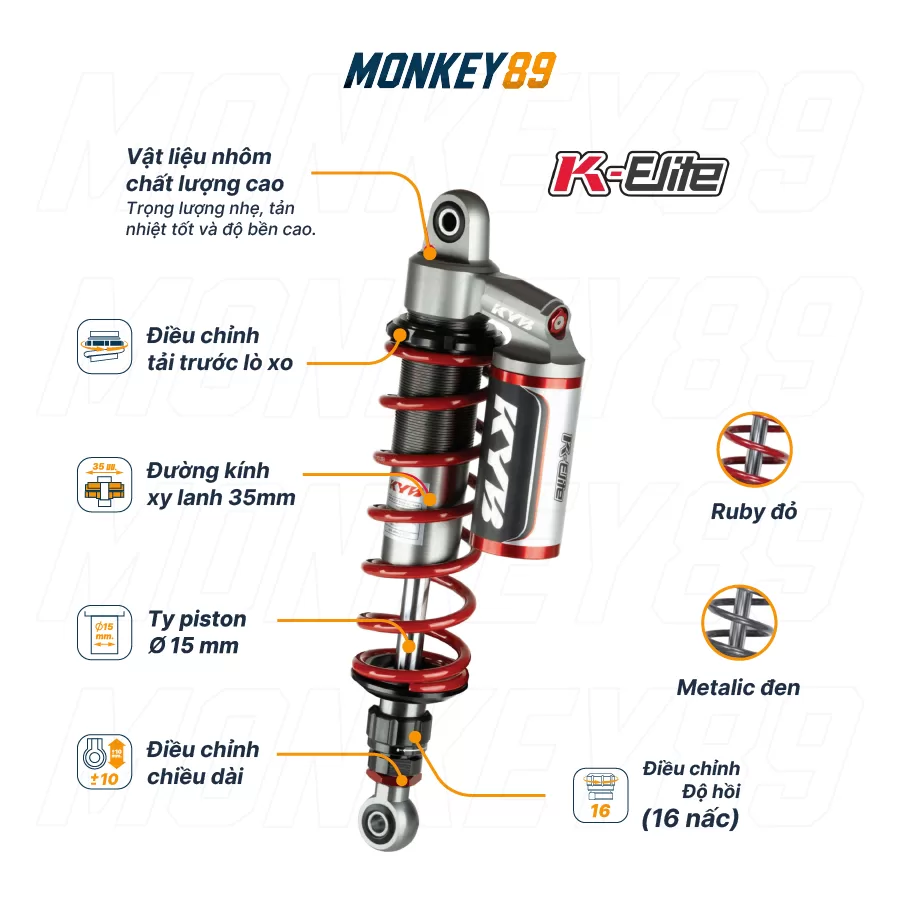

⚖️ Smart Rebound Damping Control System (16 Clicks): This is the core upgrade that elevates the K-Elite series far beyond the standard K-Alpha line. When you travel at high speeds on straightaways or lean into sharp corners with an underbone swingarm system, the Rebound dial precisely controls the extension speed of the piston rod (rebound stroke) after compression. This helps the rear wheel firmly grip the road surface, completely extinguishing dangerous rear-end wobbling, fishtailing, and bouncy floating sensations.
-
🔧 Thread Spring Preload Customization: The smart mechanical threaded collar allows you to easily adjust the initial compression of the spring to suit the exact actual total payload. Whether you're gently cruising the city or carrying heavy luggage on a long tour, KYB's premium steel alloy spring will completely absorb shock impacts, thoroughly eliminating annoying clunks and bottoming out.
-

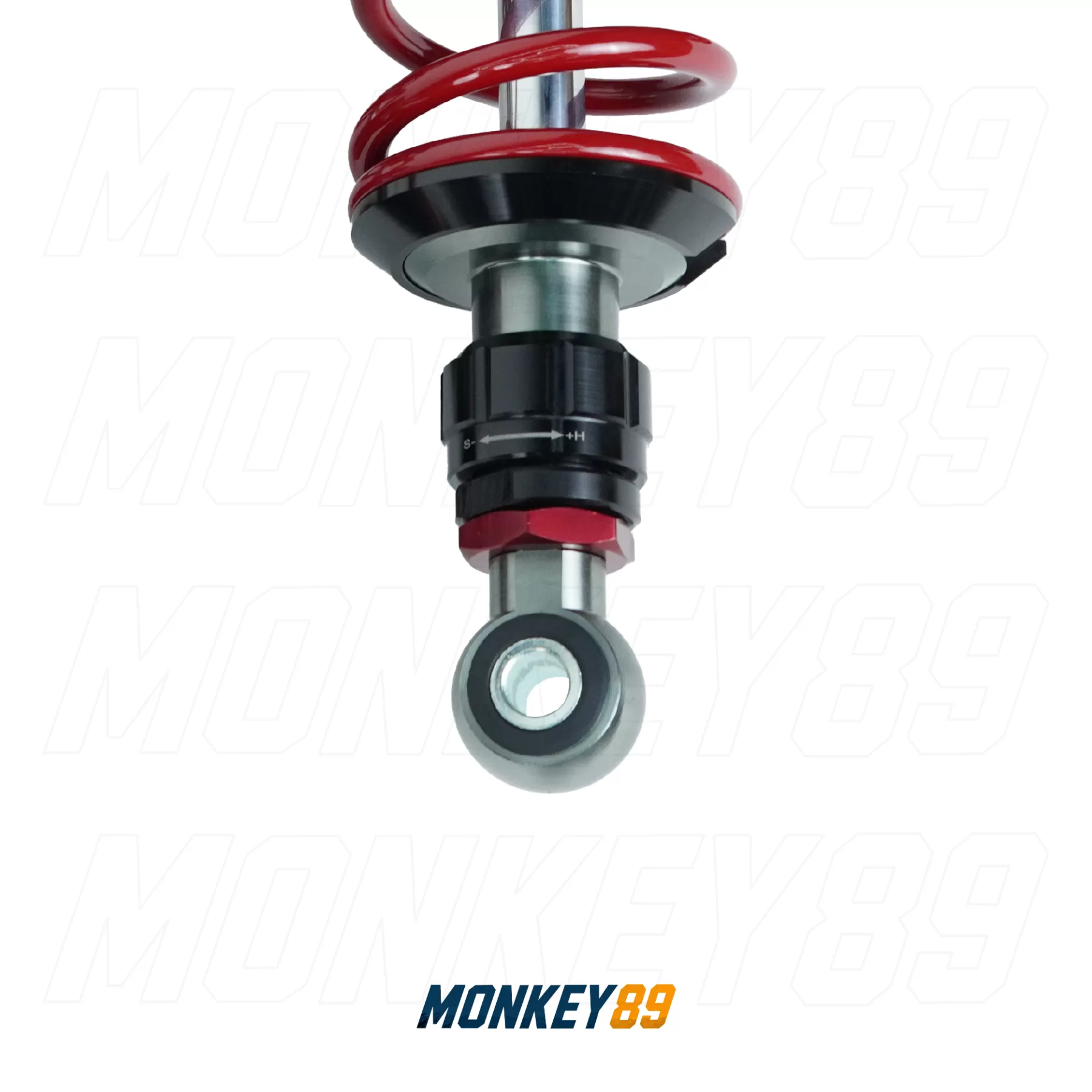

📐 Flexible Length Adjuster Ring: This feature allows you to increase the shock height from 330mm up to an additional +10mm. To protect the piston stroke and maintain the safe geometric angle of the underbone rear swingarm, Monkey89 recommends adjusting the increase between +5mm and +8mm. This slight lift raises ground clearance to prevent scraping the undercarriage or engine block when mounting curbs or riding on bad terrain.
-

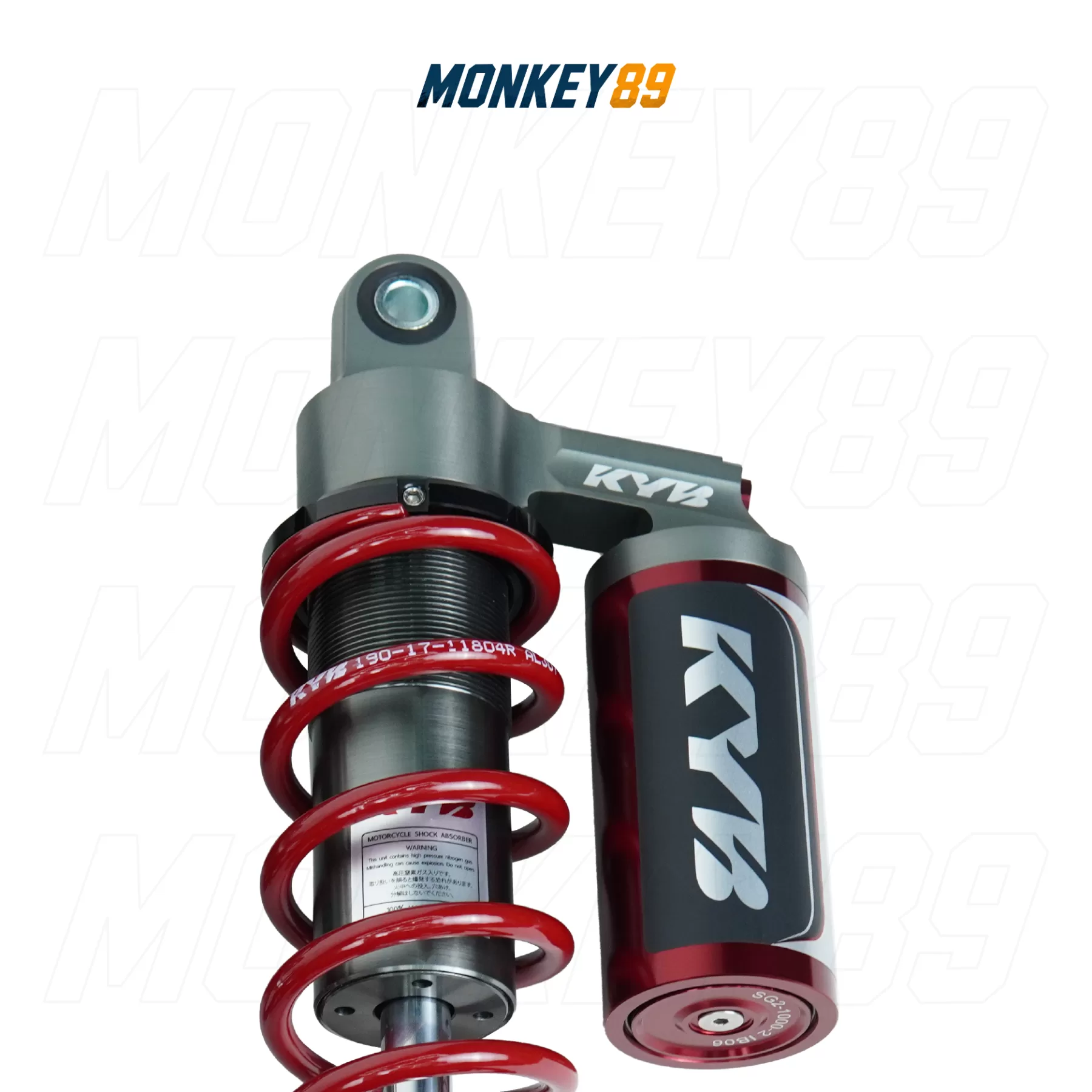

💨 Free-Piston System on Mono Tube Structure: Thanks to the use of an auxiliary piston completely separating the Japanese hydraulic oil and compressed nitrogen gas, oil aeration (cavitation/emulsification) when the shock bounces continuously at high frequencies is completely eliminated. The damping system always maintains smooth stability, ultra-fast feedback, and avoids shock fade when you ride continuously for hours under hot weather conditions.
🛠️ COMPATIBILITY & REAL-WORLD INSTALLATION
-
✅ 100% Plug and Play Double Round Eyelet Design: The pair of shocks possesses the standard 330mm geometric dimension and a dual Round Eyelet (Eyelet/Eyelet) structure standard for underbones, perfectly compatible and fitting snugly for the following models: Honda Monkey 125, Honda Future 125i (Future Led, Future Neo, Future X, Future II...), and Honda Wave (Wave Alpha, Wave RSX, Wave S 110...). You simply remove the stock shocks and secure the KYB shocks using the original stud bolts, achieving 100% precision without needing modifications or Clevis (U-mount) adapters.
-
✂️ Note Regarding Plastic Fairings During Installation:
-
For the Honda Monkey 125: The naked minibike design means the installation process is completely unobstructed, requiring ABSOLUTELY NO cutting or trimming of the plastic fairings, proudly showing off the fiercely proud and rugged Red CNC piggyback reservoir.
-
For the Honda Wave / Future 125i: Because the K-Elite shock features a rearward-facing piggyback reservoir, during installation technicians need to make a slight aesthetic trim to the plastic fairing near the chain guard or the rear side panels (depending on the specific design of your generation of Wave/Future) to create free operating space for the reservoir. The cut is handled aesthetically and discreetly by technicians, highlighting a highly attractive piggyback suspension setup.
-
-
📍 Installation Position: Installed symmetrically on both sides directly at the motorcycle's rear suspension system.
